FEATURE
|
BENEFIT
|
SPM speed range
Smooth cutting and less point breakage. When desired the point can move though the metal faster. Complete engraving projects faster with improved
control |
|
No motorized control box needed
|
No constant background noise or vibration from a motorized control box, less space required
|
Patented Variable/adjustable piston stroke length
|
Extremely broad cutting range, increased versatility, only one handpiece needed
|
No piston spring
|
Power range not limited by spring strength
|
PalmControl available
|
Eliminates foot pedal; easier to learn; no need to coordinate foot and hand movements; intuitive to “hand” engraving
|
Controls on handpiece
|
Make adjustments “on the fly”
|
Wall-mount regulator
|
More space on bench
|
Rubber handle
|
Non-slip for solid control
|
Supports pocket sized CO2 operation
|
Can be used with no electrical connection; completely portable
|
Air consumption.
|
Small air compressor or CO2 bottle operation,
|
No collets needed
|
Faster, easier tool changes
|
No tuning required
|
PSI and impacts speed are always in sync; no need to manually tune one with the other
|
Patented idle
|
Prevents possible jump at start of cut
|
Removable bore
|
Self-lubricated and easily replaced
|
Hardened piston, anvil and nose; stainless body
|
Durable
|
Optional Tungsten Dead Blow™ piston (patent pending)
|
Additional power if needed
|
The
AirGraver® is a self-running, miniature air engine using no
springs or electricity. Just blowing in the handpiece will cause it to
run. As this is impractical, the handpiece utilizes one of two types
of controllers. One controller is a set of regulators that attaches to an air compressor and a foot pedal. The second option is a PalmControl®
handle that automatically uses the natural palm pressure of the user
on the entire handle to control and vary the power of the tool. Even if a person is
accustomed to foot pedal engraving, a few minutes with the PalmControl®
is all it takes to realize the improved responsiveness. The hand is
more sensitive than the foot and capable of subtle corrections.
Because the tool is self-contained, there is no constant
background noise or vibration from a separate power unit.

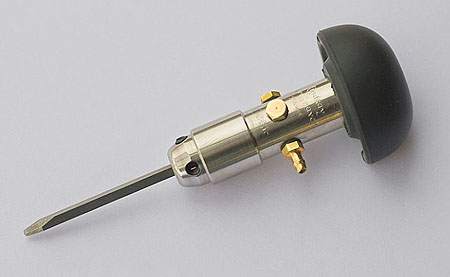

The Classic AirGraver® includes a ring around
the outside of the tool that works in a manner similar to the
focusing ring on a camera lens. The ring is used to simultaneously
adjust the impact speed and power of the tool. Either the PalmControl® or a foot control pedal is used to vary the air
pressure power within each setting range. The mechanism makes one
AirGraver handpiece as versatile as a variety of different-sized
impacting gravers.
