PalmControl TrueCenter® CamLock® Vise
Smooth and Accurate Locating Vise
 Keep your engraving location in view and centered.
Made in Nebraska, USA!

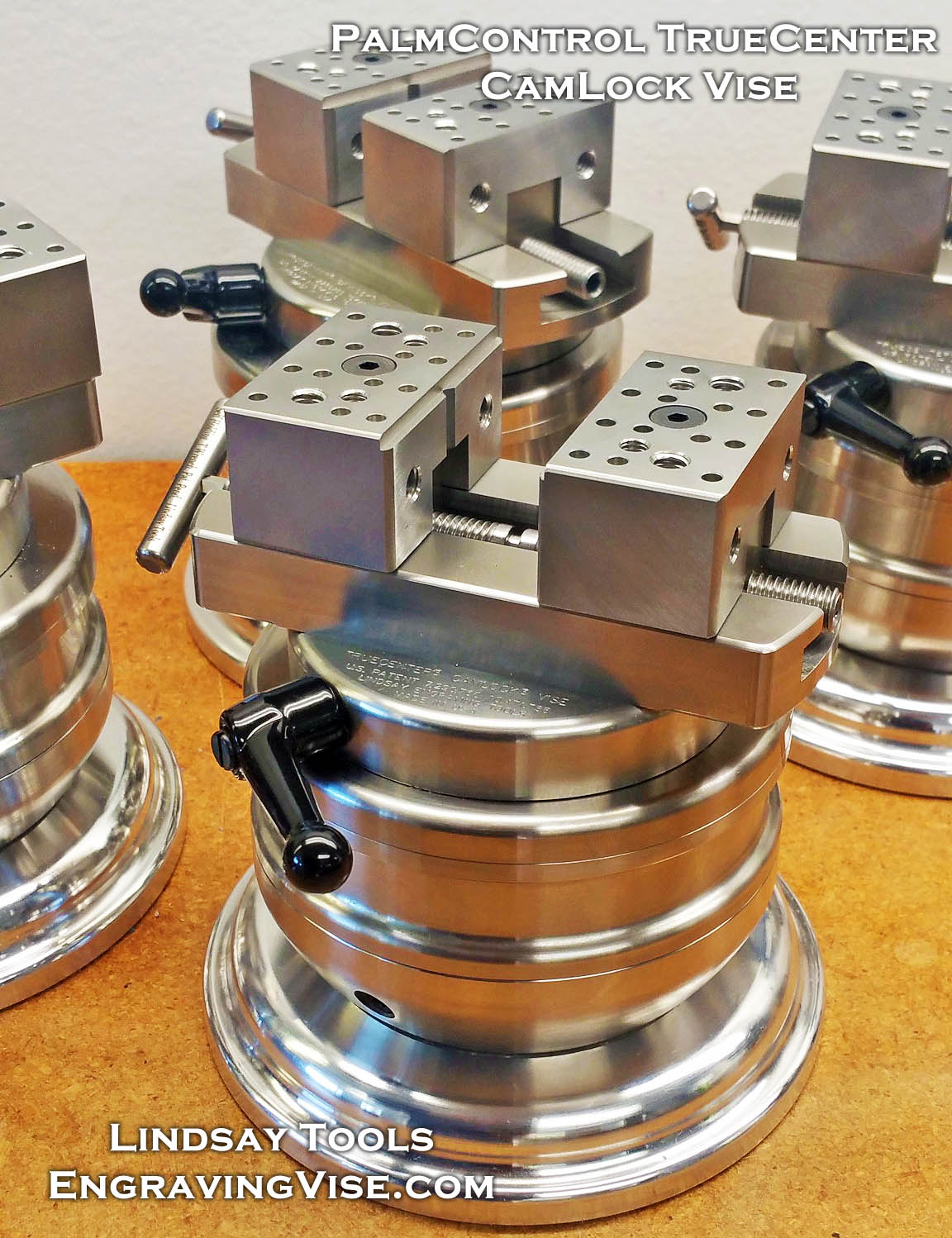

PalmControl TrueCenter CamLock
Features a solid stainless steel slide plate that is hardened to 58RC for a lifetime of durability! The jaws incorporate threaded holes in the tops and faces for customization.  For example: the multi-coin jaws will screw to the jaws, or another example: make yourself wood jaws with leather faces to screw to the top for holding knives..etc.  Included with the vise is a Self-Holding T-Wrench, Allen wrench and10 pins.  12.5 lbs.

PalmControl CamLock Vise Complete and with
Self-Holding T-Wrench, Allen wrench and 10 pins
 $1237.00

Vises on this page are only sold to the general public a few at a time. No pre-orders.  It is first come first serve. Watch our instagram page for help when more are ready and to hear notices when we have increased the stock quantity up from 0 (zero) so that orders can be taken.   https://www.instagram.com/lindsayengraving/  If you try and add one to your cart with the above button but the cart says zero (0), it means they are out of stock.

Additional models of vises, jaws and turntables are in the works.  Thank you for your patience as all is being done asap depending on our work load.  Many emails come in asking when doesn't help speed up the process.  Thank you all for the business, and for using and liking the tools!


Weights left to right, 10lbs, 12.5lbs and 14.5lbs
The PalmControl TrueCenter CamLock has a slide plate that  hardened to 58RC stainless for a lifetime of durability.  The jaws incorporate threaded holes in the tops and faces for customization.  For example the multi-coin jaws will screw to the jaws.  Includes wrench, 10 pins.


PalmControl CamLock Top Assembly
If you own a PalmControl vise already you can remove the jaws from it and replace them with the TrueCenter CamLock Top assembly.

PalmControl TrueCenter CamLock Top assembly.  (This is only the CamLock top assembly as pictured on the left.  You use your own PalmControl vise that sets under it as is pictured on the right.)  Total weight when put together with your PalmControl vise with the CamLock is 14.5lbs.


The TrueCenter CamLock vise is attached to a traditional ball base.   It is supplied with fasteners to fit a PalmControl Vise.   On request other fasters can be custom made for other ball bases. Jaws are reversible and heat treated stainless.

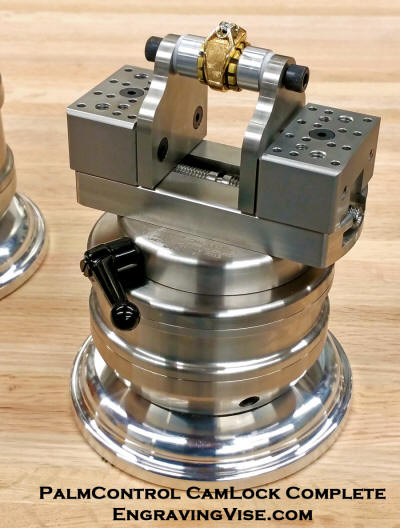

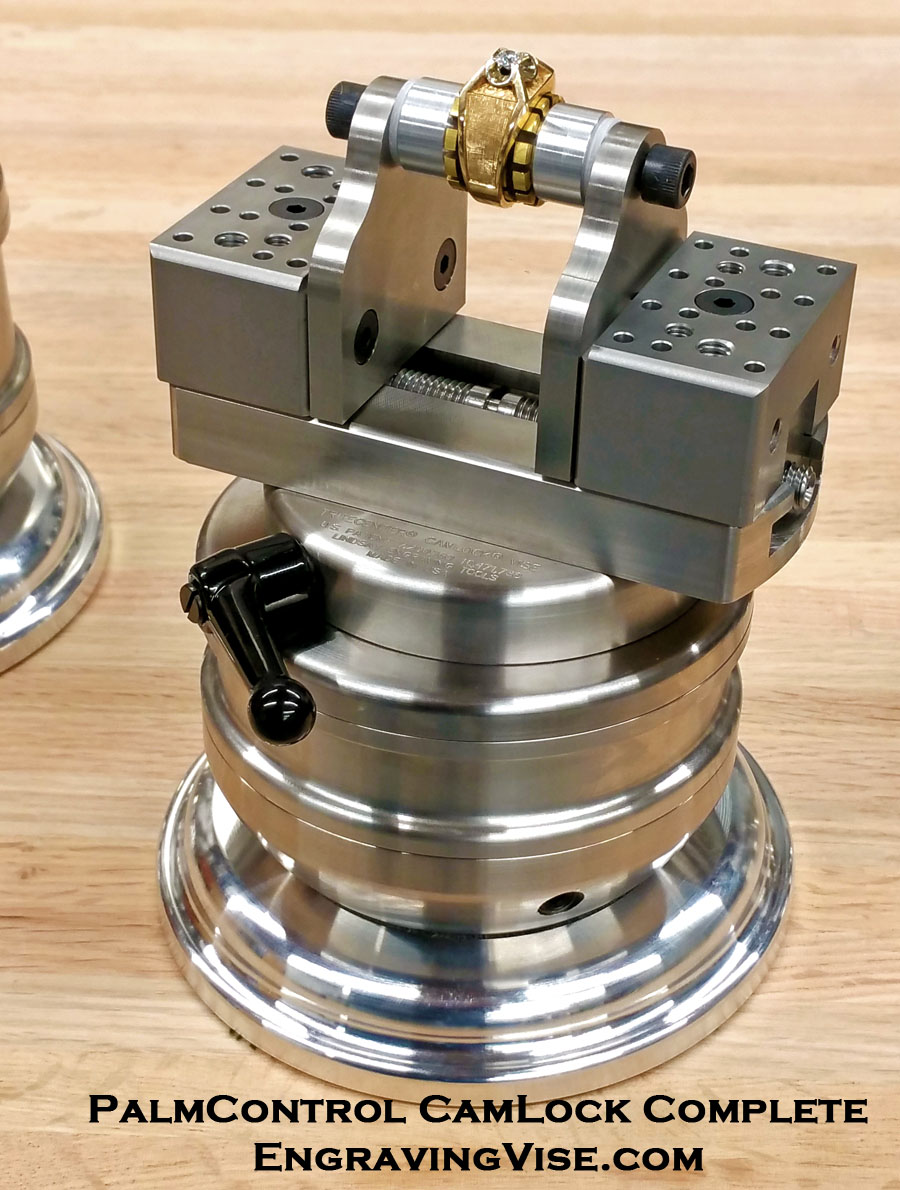

PalmControl TrueCenter CamLock Complete
Available standard height and a lowered version.



PalmControl TrueCenter CamLock Complete. Weight 12.5 lbs

PalmControl CamLock Vise Complete and with
Self-Holding T-Wrench $1237.00

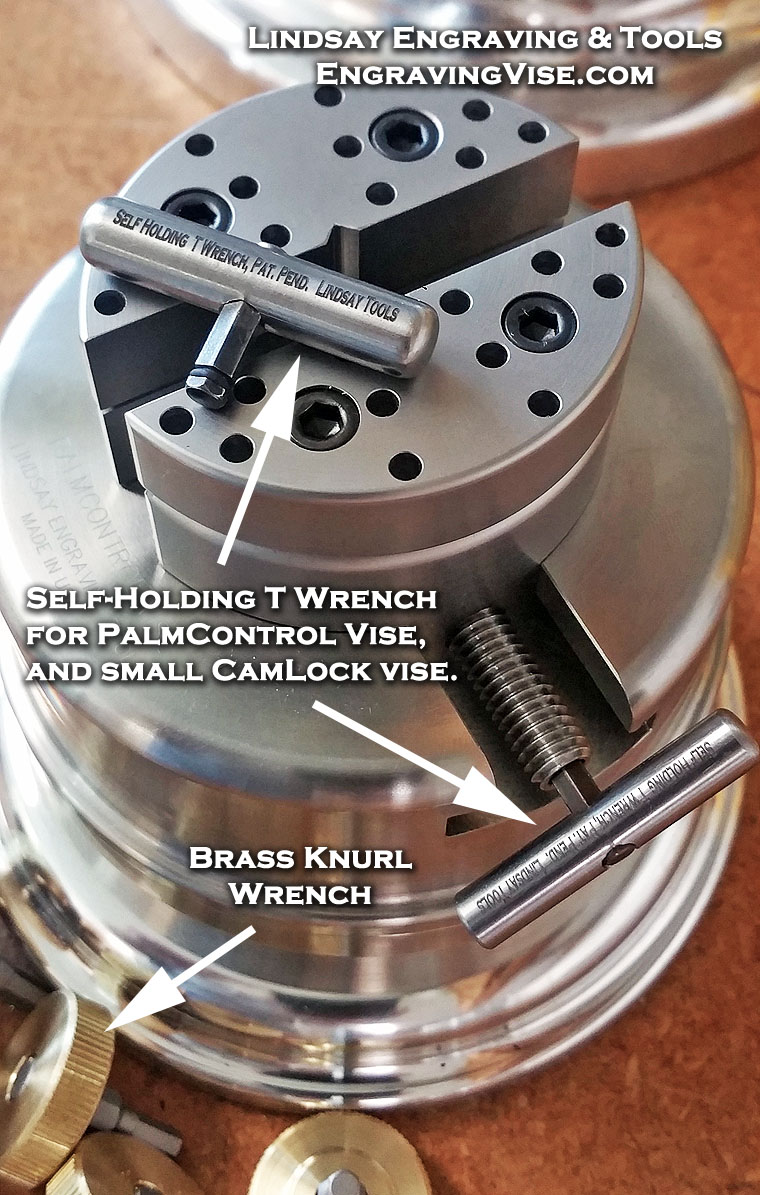

Self-Holding T Wrench for PC Vise, and PC CamLock vise. (wrench only) $46.00

Round Brass Knurl Wrench for PC Vise, and PC CamLock vise. (wrench only) $24.00






Lowered Modification  (Out of stock)
The lowering modification shortens the height 5/8".  The total height from bench top to top of the jaws with the lowered modification is 4.5 inches and weight 10 lbs.

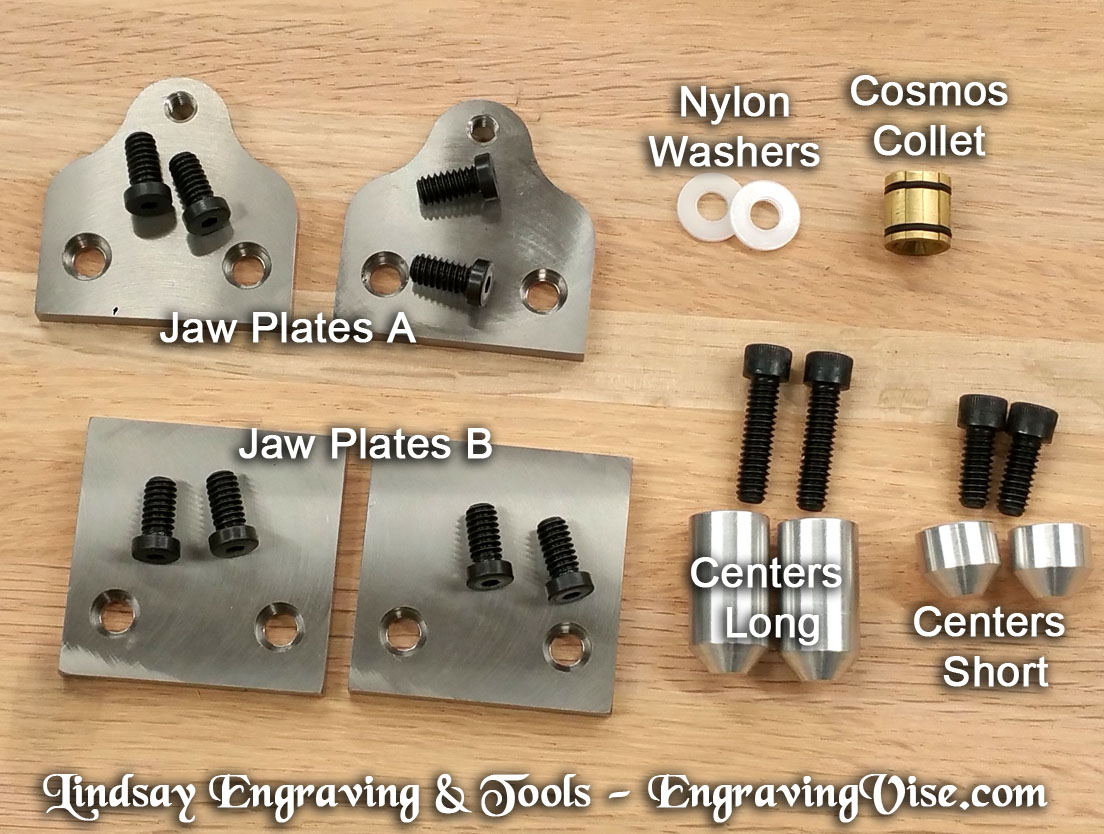

CamLock Jaw accessories
These will fit either of the two sizes of CamLock vise jaws (Goliath and PalmControl CamLock).  Scroll down to see examples of accessories installed.

CamLock Vise jaw plates and accessories
as pictured above with six finger Cosmos collet $135 Add To Cart

CamLock Vise jaw plates and accessories
as pictured above with twelve finger Cosmos collet $147 Add To Cart

Purchase separately
Jaw Plate A  $41 Add To Cart
Jaw Plate B  $38 Add To Cart
Centers Long  $14 Add To Cart
Centers Short $12 Add To Cart
Cosmos Collet brass 6 fingers $25 Add To Cart
Cosmos Collet brass 12 fingers $35 Add To Cart
Nylon Washers $3 Add To Cart


Tip Link: How to center the TrueCenter CamLock vise under your microscope
